Founded in 2014, Zhejiang Orcas refractories Co.,Ltd locate in Deqing county, Zhejiang province. The factory commits to the development of new energy-saving refractory industry. Our main products cover kinds of ceramic fiber, glass fiber and other refractories, such as ceramic fiber bulk, blanket, paper, board, textile, module, shaped pieces and glass fiber blanket, textile, and carbon fiber blanket, aerogel blanket.
Product Description

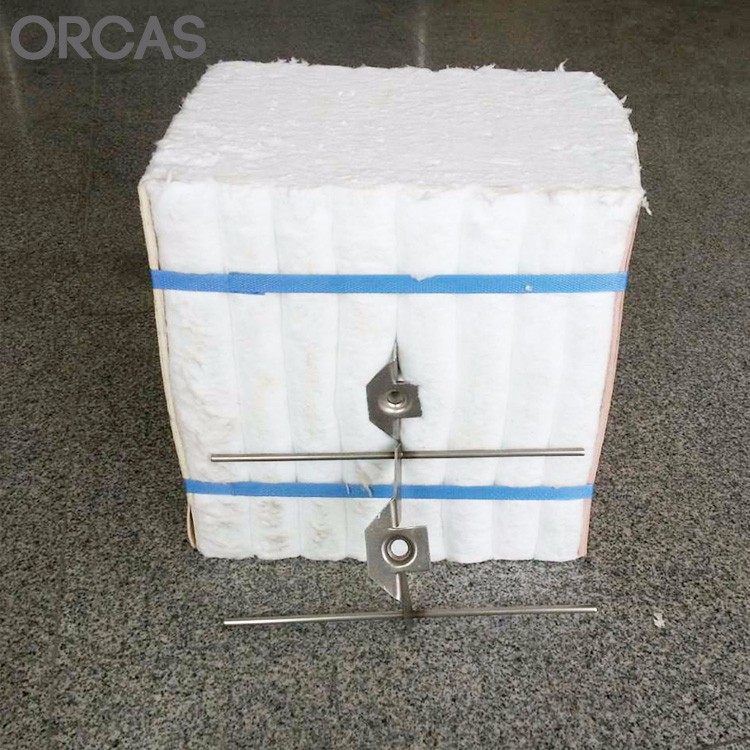

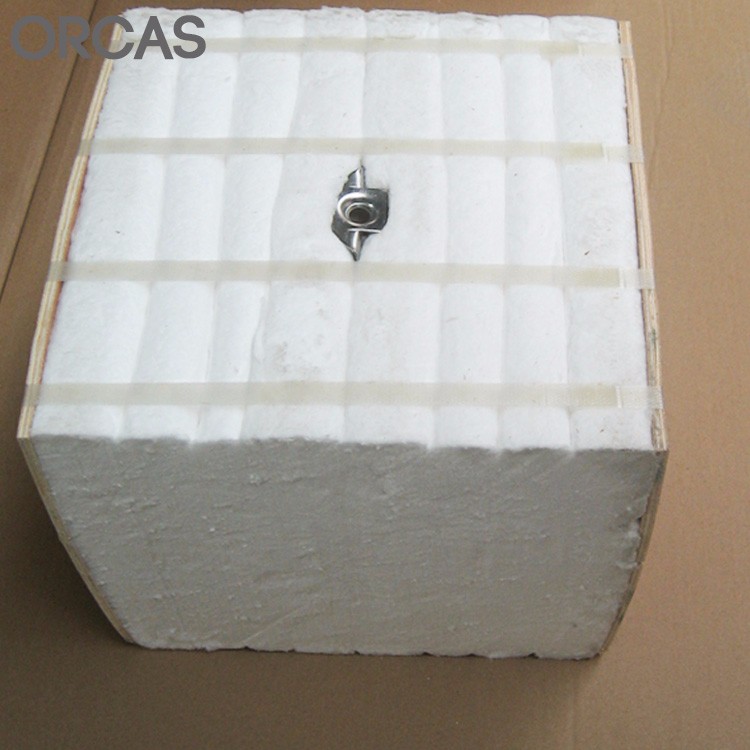

Fire resistant insulation at lowes ceramic fiber module is folded and compressed by ceramic fiber needled blanket, which is a kind of most commonly used adiabatic moudle in low temperature furnace. Simple and easy installation accelerates the construction speed of furnace lining. It has excellent chemical stability, resisting attack by most corrosive agents, expect hydrofluoric acid, phosphoric acid and concentrated alkaline.
model number
AK-23
AK-33
AK-43
AK-53
AK-63
classification temperature(℃)
1260
1400
1430
1500
1600
permanent change on heating (%)
1000℃*24H≤-3
1100℃*24H≤-3
1250℃*24H≤-3
1350℃*24H≤-3
1500℃*24H≤-3
color
white
white
white
white
white
Tensile strength (thickness 25mm)(Mpa)
≥0.05
≥0.05
≥0.04
≥0.04
≥0.04
theoretical bulk density(kg/m3)
200-220
160
chemical composition
Al2O3
≥45
≥45
≥36
≥43
≥72
SiO2
≥52
≥54
≥48
≥43
≥27
Fe2O3
≤0.8
≤0.2
≤0.1
≤0.1
--
ZrO2
--
--
≥15
--
--
specifications
300*300*200/250/300
Product characteristics
Low thermal capacity, low thermal conductivity
Ease of processing, installation
excellent chemical stability
Thermal shock resistance, corrosion resistance
Elastic fiber blanket can resist external mechanical forces
Easy to install
Product application
Furnace lines of various industrial furnace and heating equipment in metallurgy, machine, construction and material, petrol-chemical and ferrous metal industry.
Consultation hotline : +86-13732244949 FAX:+86-0572-8899595
