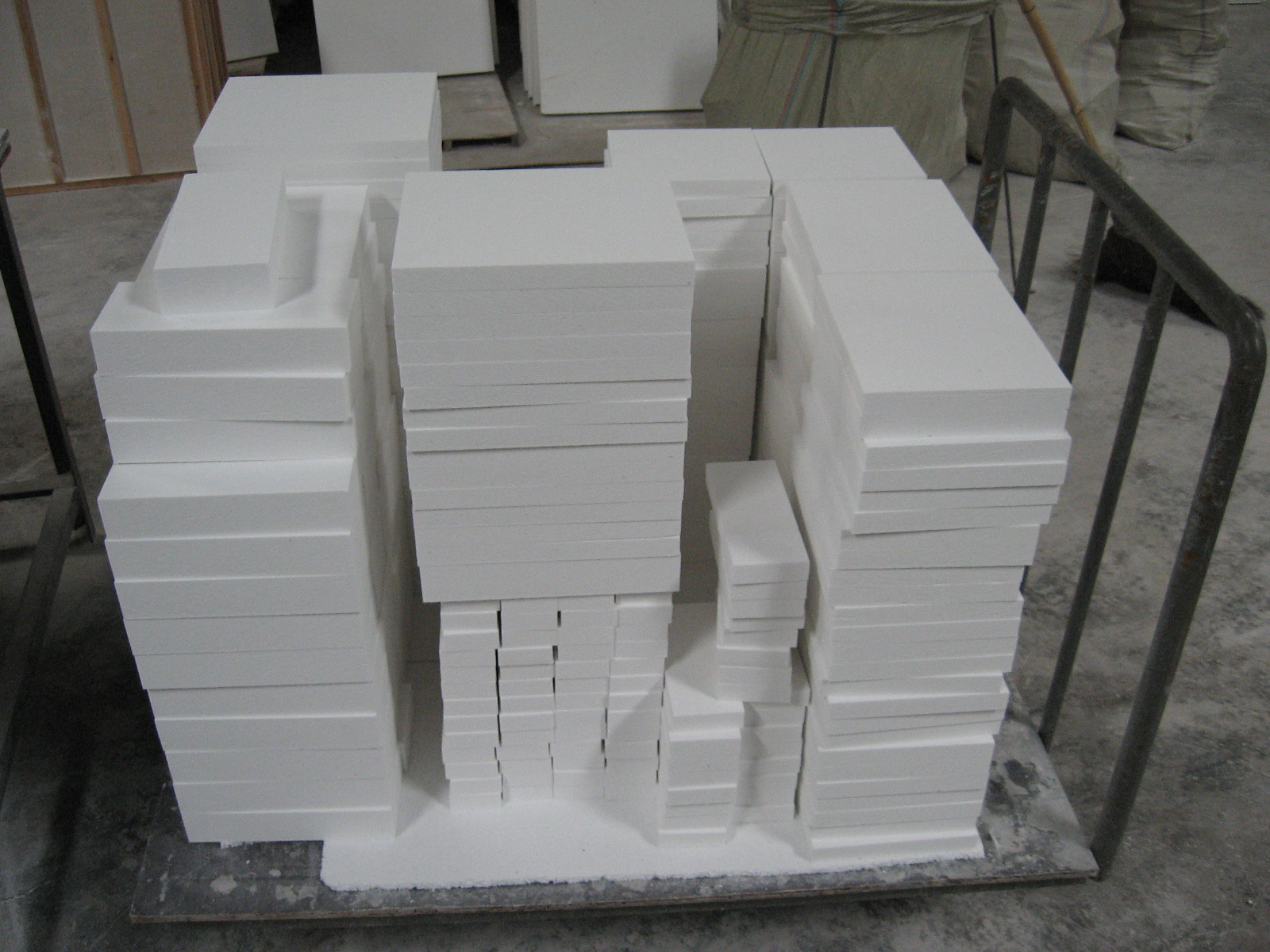

ORCASTM ceramic fiber genus wet vacuum filter press molding, ceramic fiber loose cotton and organic and inorganic binder material. The product has a low thermal conductivity, high temperature stability, uniform density, and excellent resistance to thermal shock and chemical attack capability. Also very suitable for application in by vibration, mechanical stress and strong corrosive environments. Stiffness and modulus of rupture of these plates are excellent, making high strength, self-supporting force, while relatively light weight, and easy to cut or machined. These product features suitable for fast and efficient processing, improve installation speed, thus shortening the application of a variety of industrial thermal insulation brickwork time. After installation, due to the strong capability of its insulation, thus helping to reduce energy costs and cycle times, and to protect the refractory surface is not affected by thermal shock.
TYPE
AK-24
AK-34
AK-44
AK-54
AK-64
AK-74
AK-84
Classification temperature(℃)
1260
1400
1430
1500
1600
1700
1800
Recommended temperature(℃)
≤1000
≤1150
≤1250
≤1300
≤1450
≤1550
≤1650℃
Density(Kg/m3)
260-400
300-450
300-450
400-450
400-500
450-550
500-600
linear shrinkage(%)
(1000℃×24h)<1
(1100℃×24h)<1
(1200℃×24h)<1
(1200℃×24h)<1
(1400℃×6h)<1
(1500℃×6h)<1
(1600℃×6h)<1
Chemical composition
Al2O3
42
50
35
60
72
78
85
Al2O3+ SiO2
98
99
85
99.5
99.5
99.6
99.8
Fe2O3
0.2
0.2
0.2
0.1
-
-
-
ZrO2
-
-
13-15
-
-
-
-
Features
Low heat capacity and low thermal conductivity Non-brittle material, good elasticity Excellent thermal stability Resisting wind erosion, long service life Excellent thermal shock resistance Excellent spalling resistance performance Easy to be molded and cut
Applications
High temperature sealing gasket Anti-scour parts of lining inner paste Hot surface material of high temperature furnace lining Heating device thermal insulation Furnace door and body filling material
