ceramic fiber rope-

ceramic fiber rope

Application:Heat Insulation...

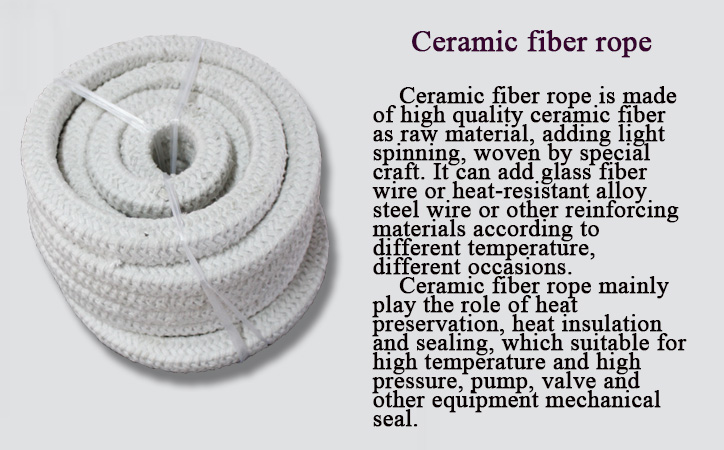

Product introduction

Ceramic fiber rope cable series, square rope, round rope, twisted rope, while square rope also called packing, which are reinforced ceramic fibers and filaments (glass or alloy wire) made of textile products. Braided line made from high quality ceramic fiber, used as heat insulation materials and an excellent substitute for asbestos rope. Ceramic fiber rope is mainly used in: door, valves, flanges, seals, fire doors and fire shutter materials, high temperature labor protection products, high temperature filtration, sound absorption and other applications in place of asbestos.

Product Features

E Adding embedded material in the fiber yarn, it can improve the tensile strength of the fabric. Metal alloy wire may be used as the insert, so as to have the greatest strength at high temperatures. Shall not be used for application of metal (such as most of the textile dielectric material), glass can be used as an embedded object. Focus tensile strength applications, but also consider embedding material temperature limits. Main provides a series of embedded material:

Glass: for 650 ℃

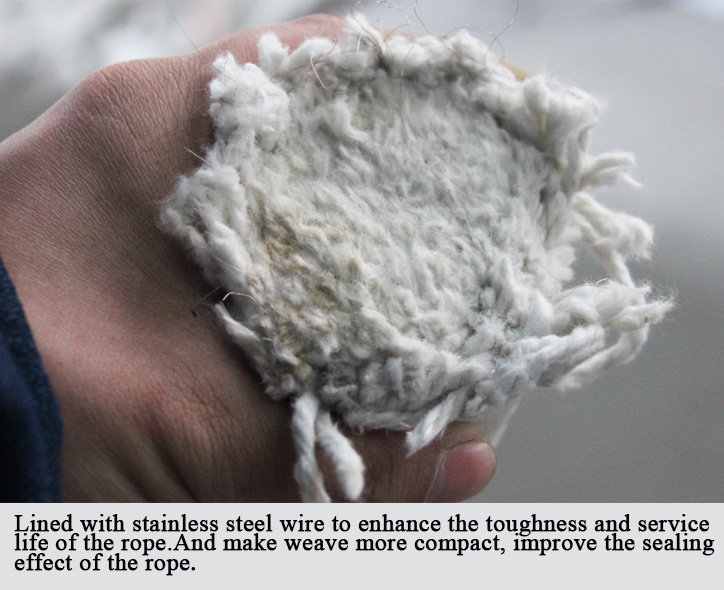

Metal alloy wire: for 950 ℃

Applications

Gasket and wrapping material

Induction furnace coil insulation

Cable and wire insulation / insulation

High pressure steam portable flange cover

Welding protective screens

Exhaust hood curtain

Insulation pipe hangers

Infrared radiation diffuser

Fuel pipeline insulation

Furnace heating zone divisions

Physical & Chemical Data

Product	line	square rope	round rope	twisted rope
Standard sizes	430-1250tex	55mm-8080mm	Φ5mm-φ100mm	Φ3mm-φ50mm
Standard sizes	Various non-standard or special specifications according to customers' requirements
Reinforced material	Available fiberglass and steel reinforced
Working temp°C	Glass: ≤650 ℃; wire: ≤1000 ℃
Packing	woven bag

Product Description

Technical data

classification temperature(℃)		1260
working temperature(℃)		960
density(kg/m3)		650
strength of extension		0.04

Specifications

Square rope: 20*20mm, 30*30mmRound rope: φ6mm， φ10mm
Other specifications can also be customized according to requirements. Please consult customer service for details

Product Characteristics
1.Thermal shock resistance
2.Low thermal conductivity
3.Low thermal capacity
4.Excellent flexibility of fiber
5.Low shrinkage at high temperature
Product applications
1. Sealed heat preservation of high-temperature furnace, heating equipment
2. Sealing and thermal insulating of furnace door, furnace lid and furnace roof
3. thermal insulation and fireproofing of electricity and high building

Compared with asbestos textiles, ceramic fiber textiles have the following advantages:
1) continuous use temperature can reach 1000℃, short time use temperature can reach 1260℃
2) good acid and alkali corrosion resistance and corrosion resistance to molten metals such as aluminum and zinc.
3）Good high temperature strength and thermal insulation performance
4) a series of ceramic fiber cloth, tape and packing products made of alkali free glass fiber as reinforcing material have higher electric insulation and high temperature electric insulation than glass fiber.
5）innocuous and unpoisonous

Ceramic fiber textile contain 15% organic fiber. According to the raising temperature, organic fiber will gradually be carbonized, so the product will turn black and emit smoke when the first time you use. However, this is normal phenomenon which will not affect the performance of product. As temperatures continue to rise, the product will gradually become white again, because there is only high temperature inorganic material such as ceramic fiber, and the organic fiber has been completely carbonized.
