ceramic fiber paper
Application:Heat Insulation...
Product introduction
CERAMIC FIBER PAPER

product description

ORCASTM Ceramic fiber paper With ceramic fiber cotton as the main raw material, adopting the wet molding process is made. Ceramic fiber paper with excellent chemical stability, and can resist erosion of most etchant, except hydrofluoric acid, phosphoric acid and strong alkali. Ceramic fiber paper by water or steam soaking, after drying, the thermal and physical properties can still be fully recovered. Most of the grades of ceramic fiber paper does not contain combined water. Ceramic fiber paper has good dielectric strength.

The characteristics of the ceramic fiber paper to  non-asbestos, long fiber, less slag ball, small density, strength, good elasticity, easy cutting, such as winding operation. Suitable for high temperature heat insulation, thermal insulation, sealing, electrical insulation, sound-absorbing, filtering, etc., can replace asbestos products, is a kind of advanced lightweight refractory materials. For the first time in its exposure to temperature above 230 ℃, except some Inorganic substance, ceramic fiber paper will produce a small amount of smoke and trace the degassing of material.

Product Features



High flexibility

High resistance to tear

Low content of slag ball

Heat resistance

Applications

 high temperature gaskets

 asbestos substitutes

 muffler car muffler insulation materials, the exhaust pipe

 models lined decorative glass and jade crystal glass

 furnace door and the expansion joint sealant

 fireproof materials

 insulation

 hot gas filtration media

 molten metal spatter and spark guard

Product Specifications

Tape

AK-26

AK-46

Classification temperature()

1260

1430

Density(Kg/m3)

180±20

180±20

Tensile strength(kg/m2)

0.3-0.9

0.3-0.9

organic content(%)

<8

<8



Specifications and packaging

(1)Common specifications(mm):

1*610*60000

2*610*30000

3*610*20000

4*610*15000

5*610*12000

6*610*10000

(2)Special specifications can be customized

(3)Packaging: cartons, plastic bags inside

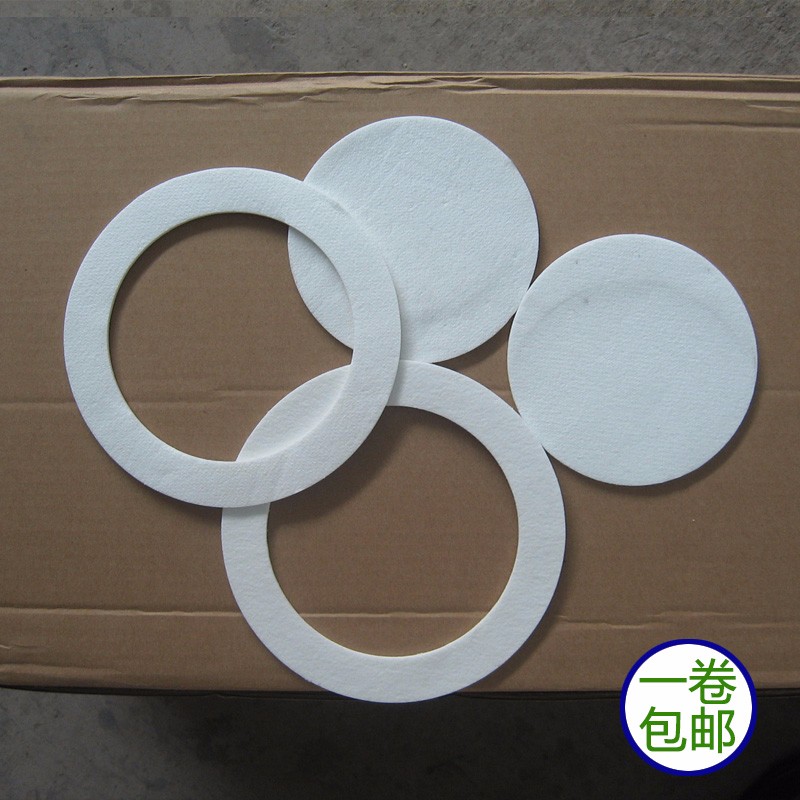

 ORCAS AK-26 High temperature ceramic fiber flange gasketORCAS AK-26 High temperature ceramic fiber flange gasket
