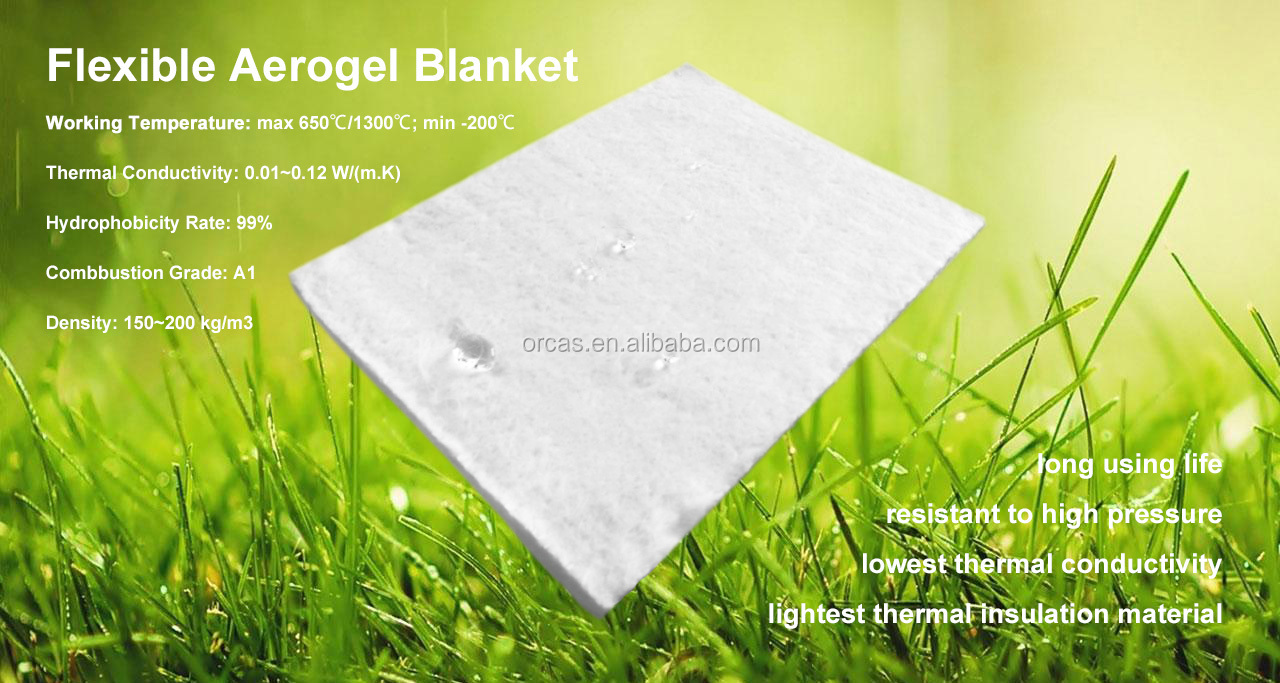

Aerogel Blanket
Aluminum silicate products Material...
Product introduction

Aerogel blanket is a new type of environmental-friendly inorganic thermal insulation material, until now, it is the lowest thermal conductivity solid product, in addition, it is flexible, hydrophobic & stable which property does not decay with time.
Performance
Specification
Working temperature
max 650℃/1300℃, min -200℃
Thermal conductivity (W/m.K)
0.014 (25℃), 0.025 (200℃), 0.057 (500℃), 0.12 (1100℃)
Hydrophobicity rate
99%
Combustion grade
A1
Density (kg/m3)
150-200
Tensile strength (Mpa)
1.7
Thickness (mm)
3, 5, 6, 10

Property

1. Excellent heating insulation, 2-8 times insulation property than traditional insulation materials.
2. Long using life.
3. Excellent hydrophobicity almost 99%

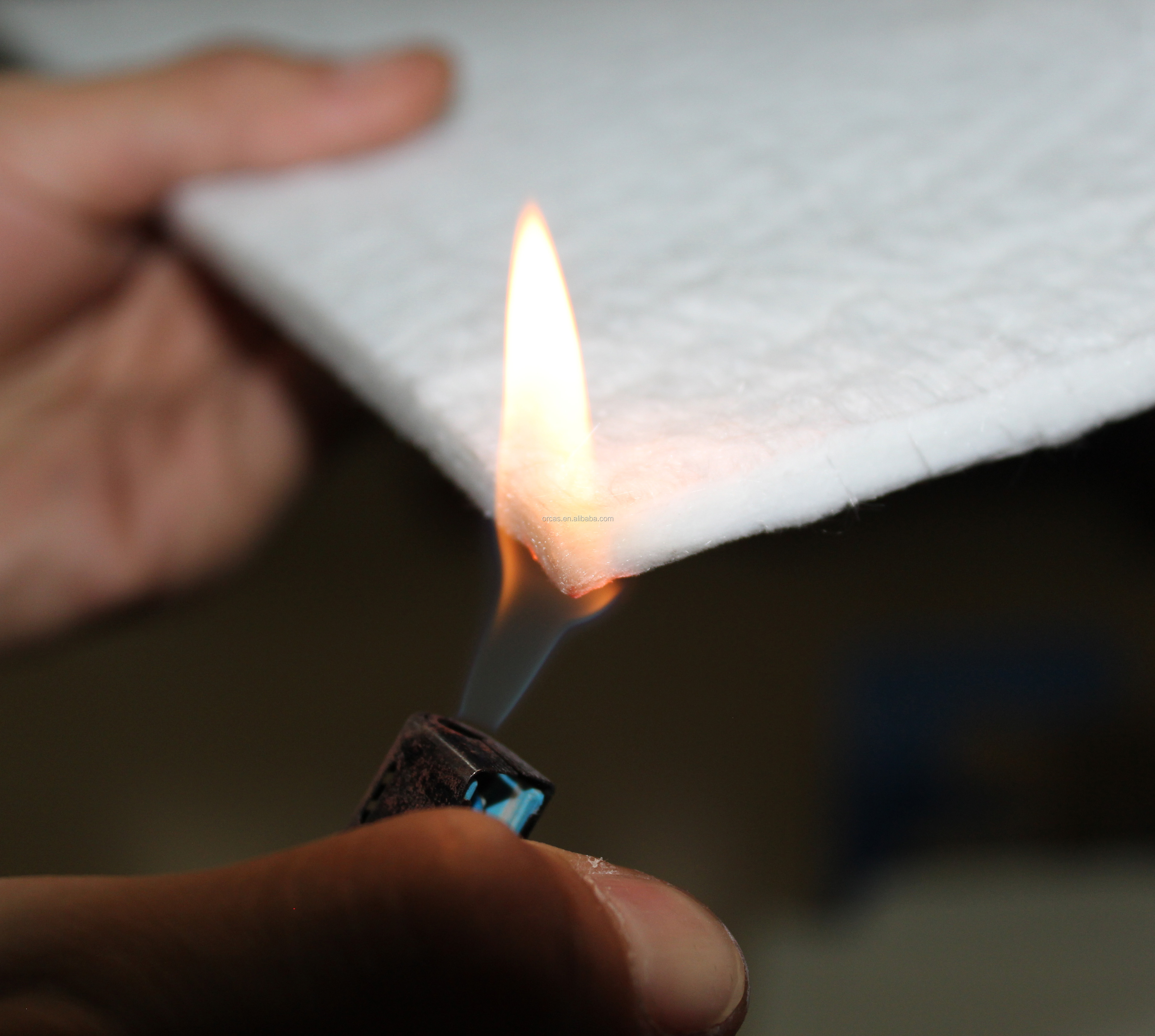

4. Fireproof property can be grade A1
5. Easy to cut & tailor to be used in complex and bent surface or shape
6. Cost saving, lower shipping and storing cost

Application

1. Pipeline insulation: petroleum pipeline,steam pipeline etc
2. Tank insulation: LNG, storage tank, large mechanical furnace etc
3. Household appliance insulation: refrigerator, air condition, electric heater etc
4. New energy car, bus, train etc
5. Building insulation: office building, industrial building wall etc
6. Military aerospace: space shuttle, reactor, rescue capsule etc

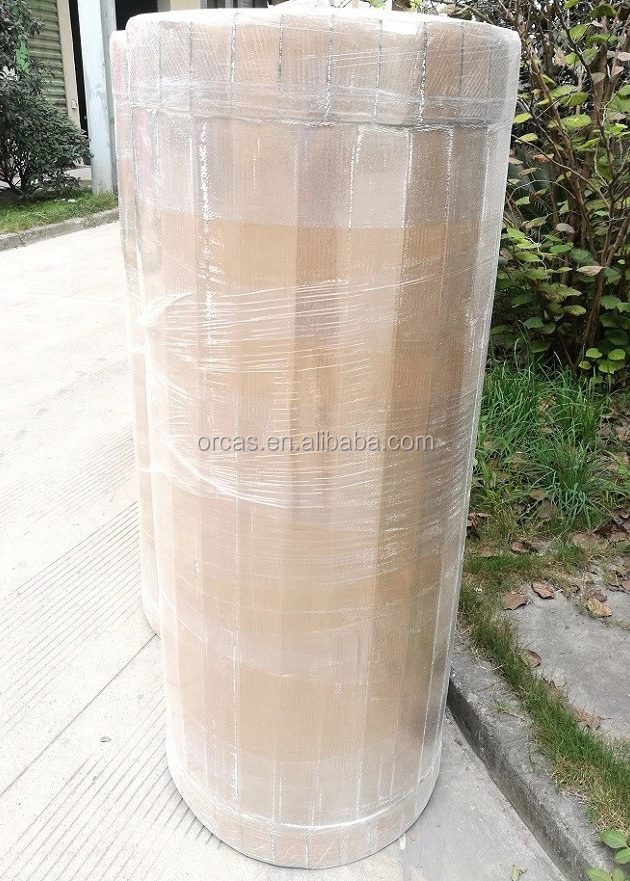

Package

Package: Inside plastic bag, and outside carton; or customized
Shipping: Samples shipped by express, batch order shipped by sea from Ningbo/Shanghai port; or customized
